Project case study
33-35 Piccadilly
Waterproofing design consultant for a two-storey basement extending over the entire site at 33-35 Piccadilly, with DSDHA as architect and Heyne Tillett Steel as structural engineer.
33-35 Piccadilly is a central London scheme with DSDHA as architect, Heyne Tillett Steel as structural engineer and Kier as client. CLW was commissioned as the waterproofing design consultant for a two-storey basement which extends over the entire site, together with the podium areas above it.
A full-site basement leaves no margin at the boundaries, every junction with neighbouring structures and the podium above is a waterproofing interface that has to be resolved in the design, not on site. CLW worked closely with the entire design team to provide a clear and efficient design for the Grade 1b and Grade 3 spaces.
The waterproofing design is tailored to suit the final basement construction, with either Type A (cementitious slurry) or Type B (structurally integral) protection, combined with Type C (drained cavity). Holding both primary options open against the structural solution, rather than fixing a product early, is what keeps the design honest to how the basement will actually be built.

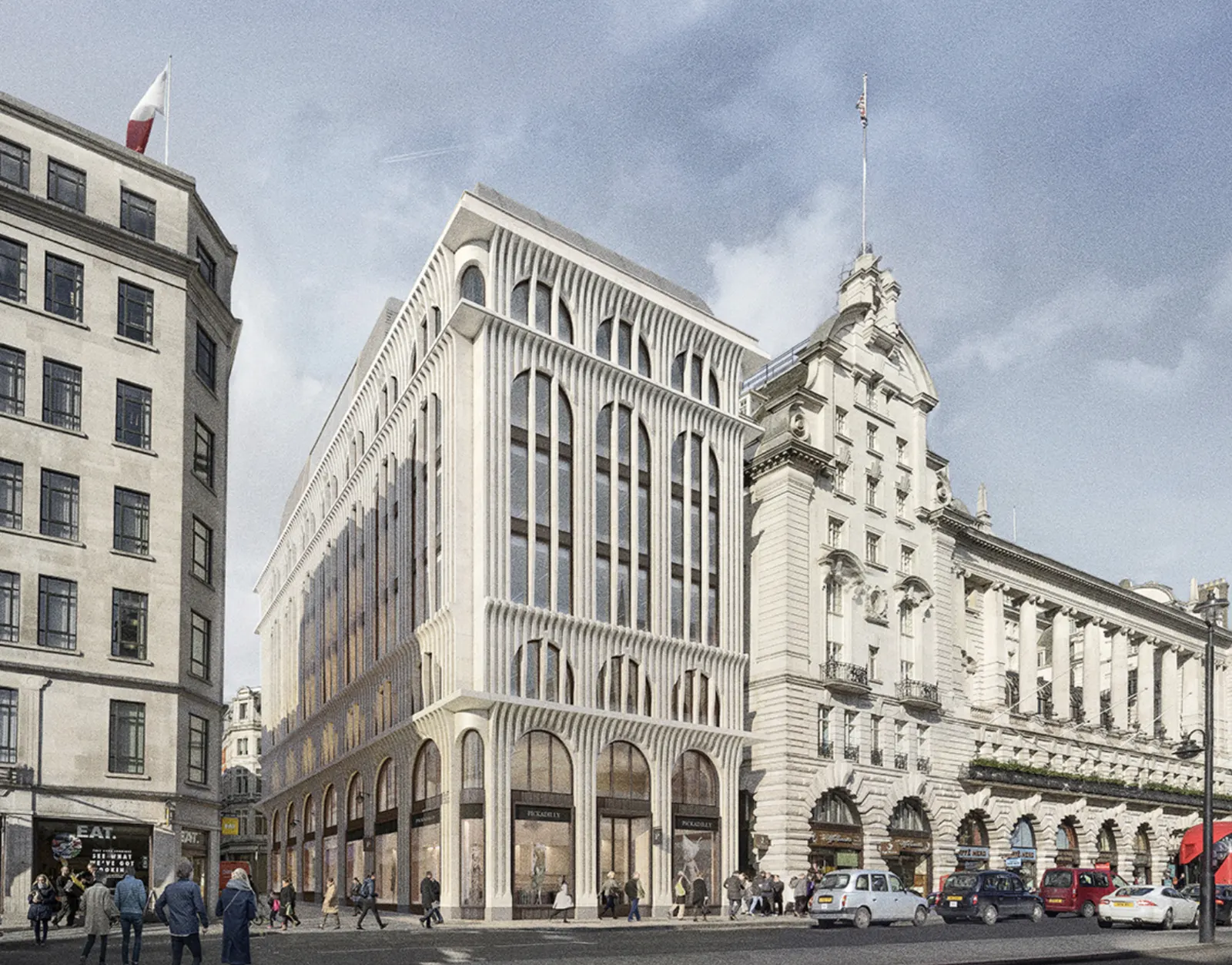

Image credit: DSDHA.
