Ground Gas Mitigation in Basements: Where Gas Protection Meets Waterproofing

Ground gas and groundwater enter basements through the same routes. The slab, the walls, the construction joints, the service penetrations. Yet on most commercial projects, gas protection and waterproofing are specified by different consultants, against different British Standards, and installed by different subcontractors.

That split scope is where the risk lives.

What ground gas protection is for

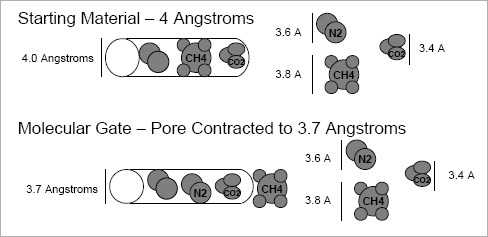

Below-ground structures on certain sites must be protected against gases migrating from the ground: methane and carbon dioxide from made ground, landfill or organic soils; volatile organic compounds on contaminated land; and radon in affected areas of the UK.

The governing standard is BS 8485 (Code of practice for the design of protective measures for methane and carbon dioxide ground gases for new buildings), supported by CIRIA C665 for risk assessment and BR 211 for radon. The ground investigation report and its gas monitoring data determine a Characteristic Situation (CS1 to CS6) for the site. The CS level, combined with the building type, sets a points score that the protection measures must meet.

Points are earned from three families of measure: the structural barrier itself, a ventilation layer beneath the slab, and a dedicated gas-resistant membrane.

Why this is a waterproofing conversation

Here is the part that gets missed. Under BS 8485, a well-detailed reinforced concrete basement structure — the same Type B structure your waterproofing strategy may already rely on — earns gas protection points in its own right. A fully tanked Type A waterproofing system can, with the right product selection, double as the gas membrane. And a cavity drainage (Type C) system changes the gas pathway assumptions entirely, because it deliberately creates a ventilated void inside the structure.

In other words: the waterproofing strategy you select under BS 8102 directly changes the gas protection score under BS 8485, and vice versa. They are not parallel scopes. They are one below-ground envelope, assessed twice.

Designed together, the two requirements often reinforce each other and save money — one membrane doing two jobs, one set of junction details, one installation sequence. Designed apart, you get the familiar failure modes:

• A gas membrane specified above the slab where the waterproofing designer assumed their membrane below it, leaving an undrained interface that traps water.
• Taped gas membrane junctions punctured by a following trade installing the waterproofing — or the reverse.
• A Type C cavity system installed inside a sealed gas envelope with no thought given to where the cavity vents, potentially drawing gas through the very system meant to manage water.
• Two warranties, two installers, and no one accountable for the junction between them.

The questions to ask on your scheme

If your project has a basement and the ground investigation flags made ground, organic soils, historic landfill, contamination or radon, ask these before Stage 4 design freezes:

Who owns the combined envelope? One designer should carry both the BS 8102 waterproofing design and the BS 8485 gas protection strategy, or at minimum a named lead should own the interface. If the answer is “the structural engineer does the structure, the environmental consultant does the gas, the architect does the rest,” you have a scope gap.

Does the gas membrane double as waterproofing, or fight it? Many modern membranes are certificated for both duties. Using one product for both is usually better than layering two systems that were never designed to coexist.

What does the structure itself contribute? A monolithic reinforced concrete box with water bar protected joints earns points under BS 8485. Crediting it properly can reduce the membrane requirement, simplify detailing and de-risk installation.

How are penetrations and junctions sequenced? Most gas protection failures, like most waterproofing failures, happen at details and penetrations, not in the field of the membrane. The installation sequence needs to be designed, not left to site.

Is verification specified? BS 8485 expects installation by appropriately trained operatives and, on higher-risk sites, independent verification of the installed membrane. Build it into the specification, not the snagging list.

Where CLW sits in this

CLW designs basement waterproofing to BS 8102:2022 and, where ground gas is in play, we coordinate the gas protection strategy with it so the below-ground envelope is designed once, as one system. On schemes where the gas risk is significant, we work alongside the project’s environmental consultant — but the membranes, junctions and sequencing sit with one accountable designer.

If your ground investigation has flagged ground gas and your basement waterproofing is being designed separately from it, that is worth a conversation before the design freezes.
